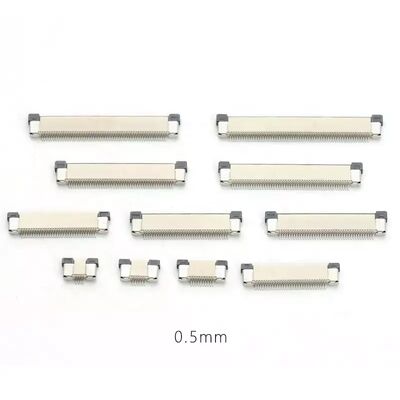

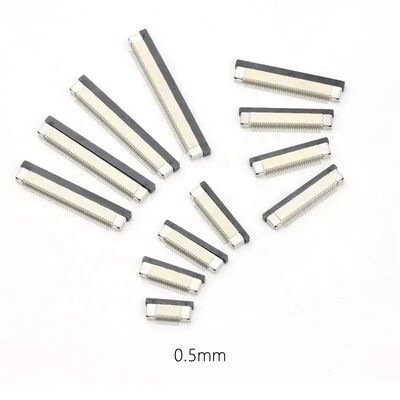

FPC Connector 0.5 Pitch Horizontal Smt Flip-lock Type Upper Top Bottom Down Contact 4-60pin

FPC Connector 0.5 Pitch Horizontal Smt Flip-lock Type Upper Top Bottom Down Contact 4-60pin

.

Description

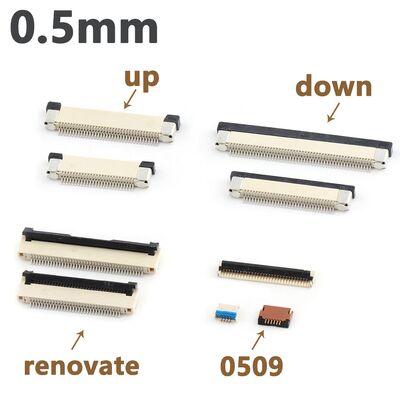

This series is ZIF, SMT type FPC/FFC Connectors with slide locks which enable secure connection with flexible cables. These low profile connectors feature a total height of 2.0mm,with bottom contact or top contact.can provide 3.0mm height.

Factory Supply ffc/fpc connector Tin Plated 0.5mm pitch high Temperature Resistance FPC Connectors
FPC Connectors or flexible printed circuit connectors are products that have been created for the assembly of specially designed circuits. Flexible electronics, also known as flex circuits, is a technology for assembling electronic circuits by mounting electronic devices on flexible plastic substrates, such as polyimide, PEEK or transparent conductive polyester film.These type of connectors are suitable for use in a broad range of applications such as mobile phones, GPS, notebook PCs, data terminals, LCD TVs, digital and video cameras and other small handheld devices that connect to an LCD.

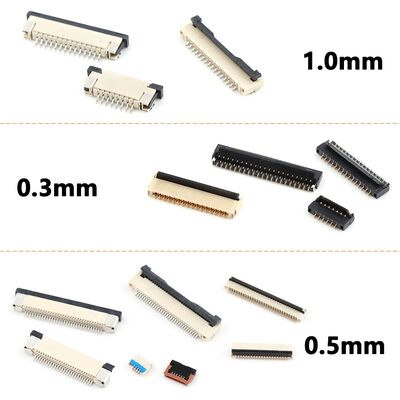

Pitch:0.3mm/0.5mm/0.8mm/1.0mm,and so on.
Pins:4pin-64pin.
Material:Brass/LCP

What is the FPC FFC connector:
The FPC FFC flat connector is not limited to current, but in the rapid development of optoelectronic technology today, the carrier of the transmission signal is light, glass and plastic replace the wire in the ordinary circuit, but the optical signal path also uses the FPC FFC flat connector, their function and the circuit FPC FFC flat connection The connector is the same.

Product Application
1. FFC connector is widely used in the connection between various printer printheads and mainboards, signal transmission and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines and various DVD players.
2. FPC connector is mainly used in various fields such as digital communication products, portable electronic products, computer peripheral equipment, measuring instruments, automobile electronics, etc., such as mobile phones, digital cameras, notebook computers, mid, MP3 4 5, handheld game machines, audio systems, etc.

Main differences between FFC connector and FPC

In terms of their manufacturing, the way their circuits are formed is different:

1. FPC is a kind of flexible circuit board with different single side, double side and multilayer structure, which is processed by FCCL (flexible copper-clad foil) by chemical etching.

2. FFC is to use two layers of insulating foil film sandwiched with flat copper foil. The finished product is simple and thick.

FPC future innovation trend:

1. Thickness. The thickness of FPC must be more flexible and thinner.

2. Folding resistance. Bending is the inherent characteristic of FPC. The FPC resistance of the future must be stronger and must be more than 10 thousand times. Of course, this requires better substrates.

3. Price. At this stage, the price of FPC is much higher than that of PCB. If the price of FPC is down, the market will be wider.

4. Process level. In order to meet various requirements, the FPC process must be upgraded, and the minimum aperture and minimum linewidth / line spacing must meet higher requirements.

Our Service

1. the series of product specifications are complete, but also tailor-made.
2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive

Automatic Production

More than 80% XTK products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.

Delivery on time

Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.

Make Value

Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.

Instant Response

Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.
